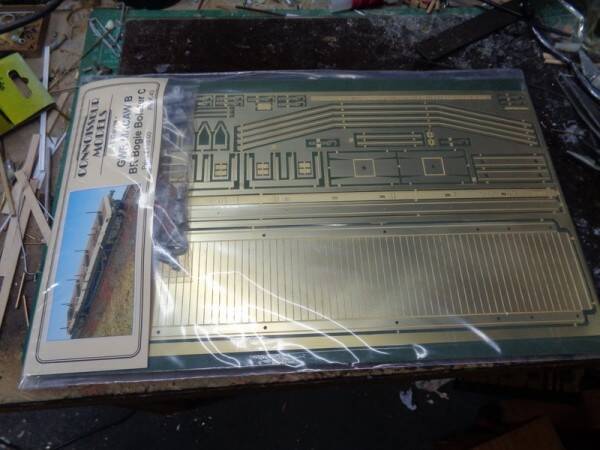

As always, superbly presented.

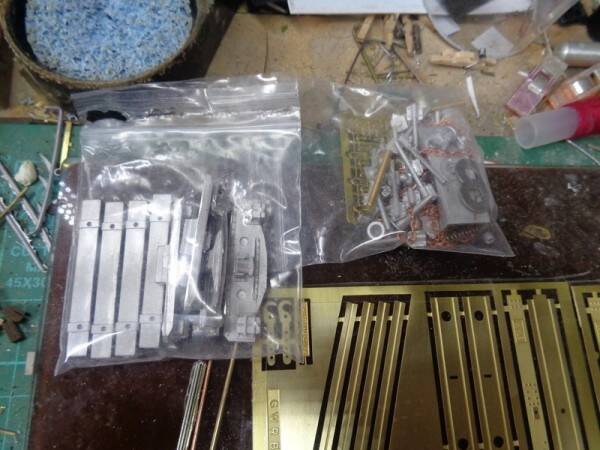

and my beautiful castings.

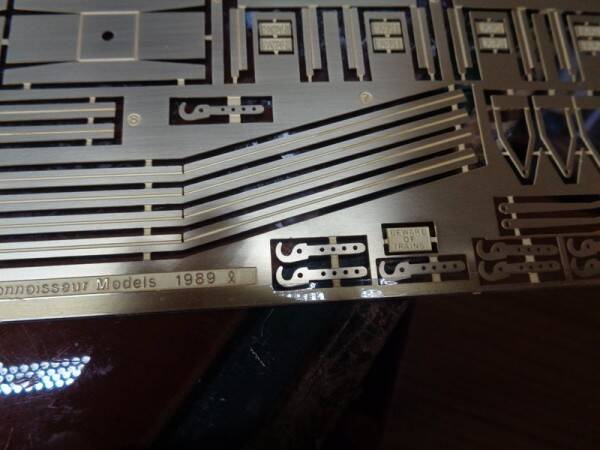

And 'Beware of Trains'. Nice touches.

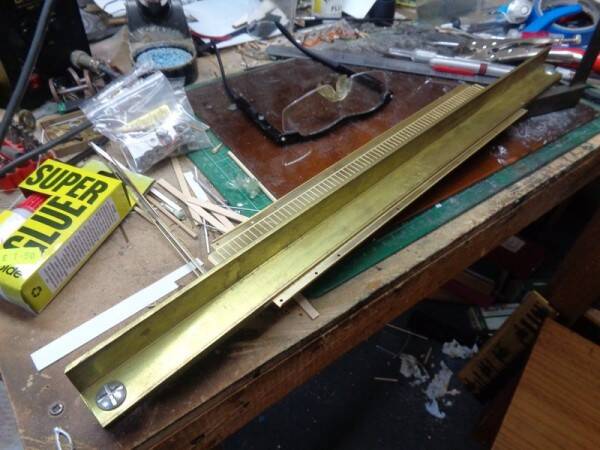

With some fairly industrial bending bars.

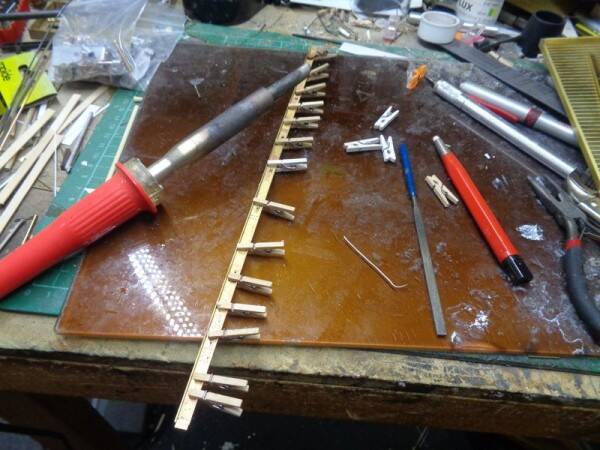

Getting the overlays into the sole bars with the blunderbuss iron.

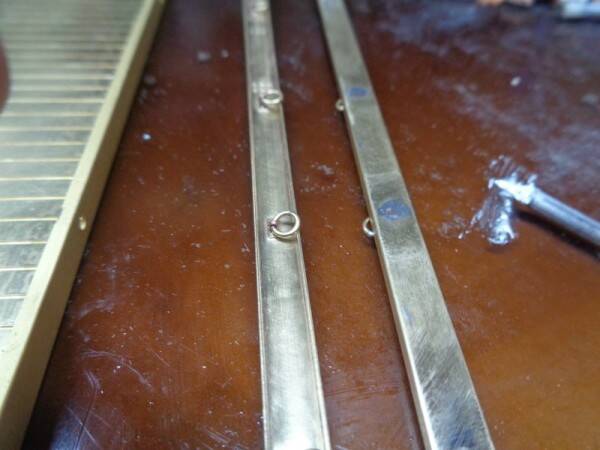

Sole bars ready to go on... almost. The tie rings need to go on first.

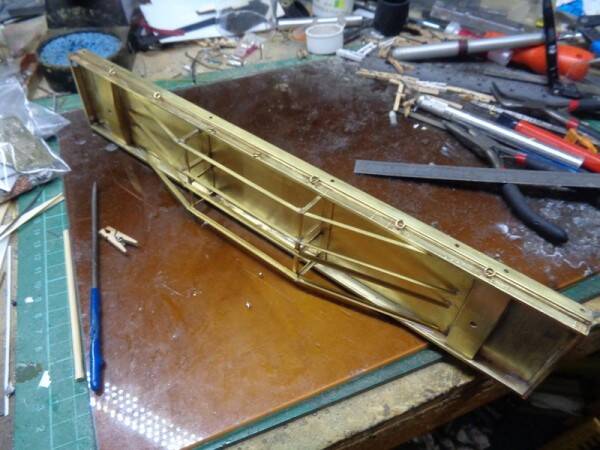

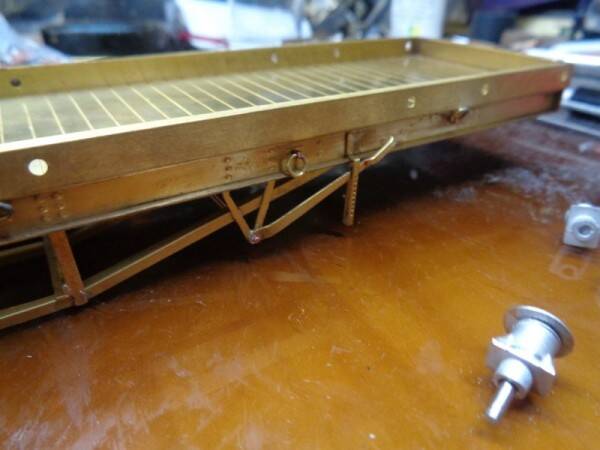

Struts added underneath.
Hand brake added.
I couldn't find sprung alternatives so I used the kit ones,

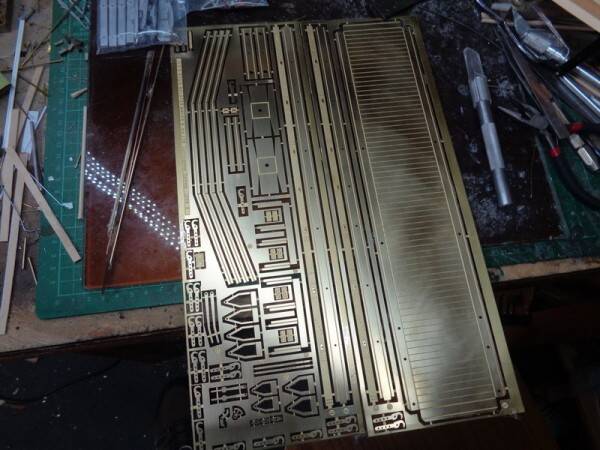

Come up and see my etchings.

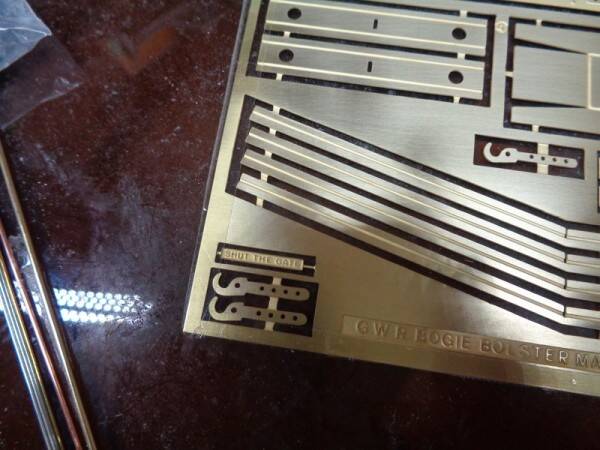

Love it - 'Shut The Gate'

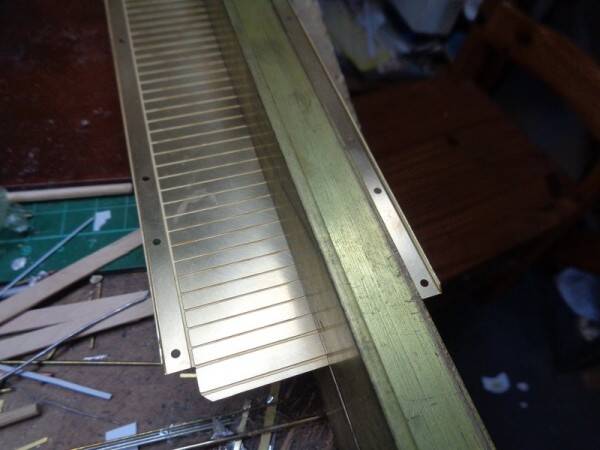

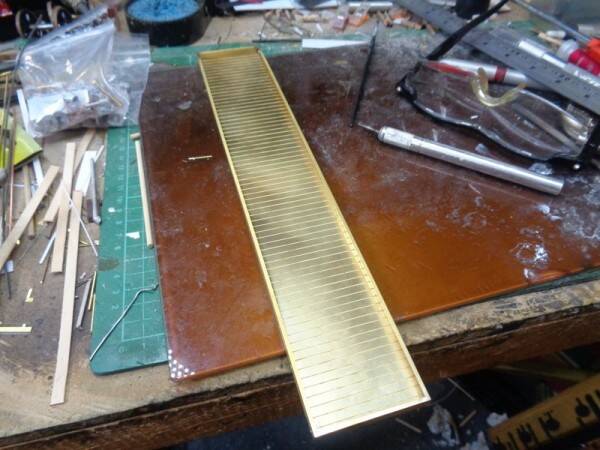

Some fairly industrial folding required.
(Jazz club voice) Nice...

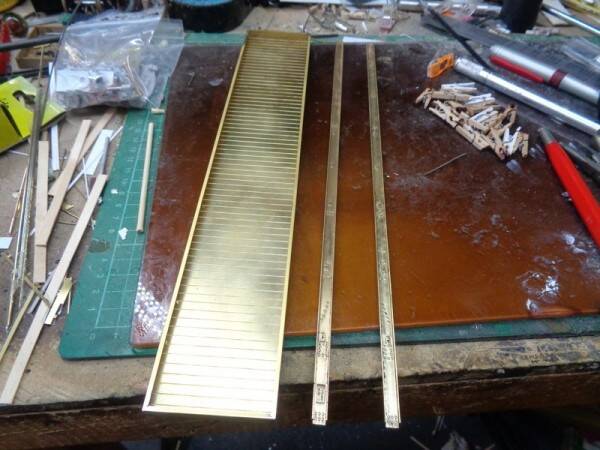

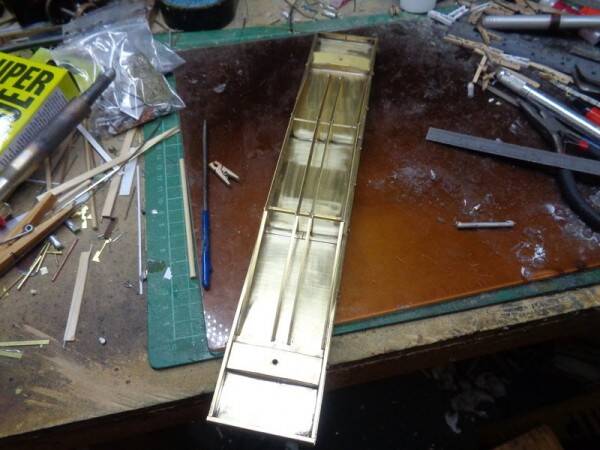

Sole bars ready to go on.

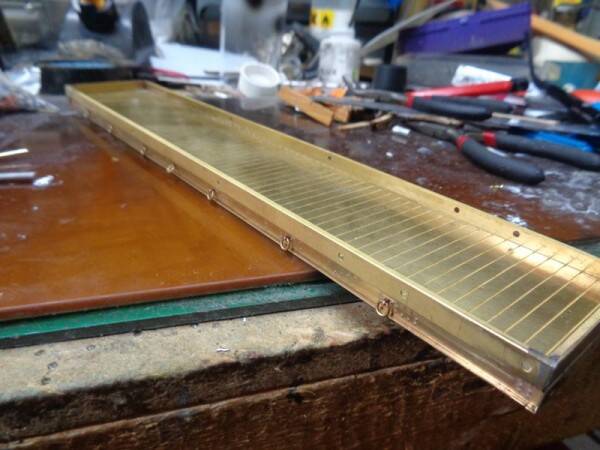

Now the sole bars go on.
Another view.

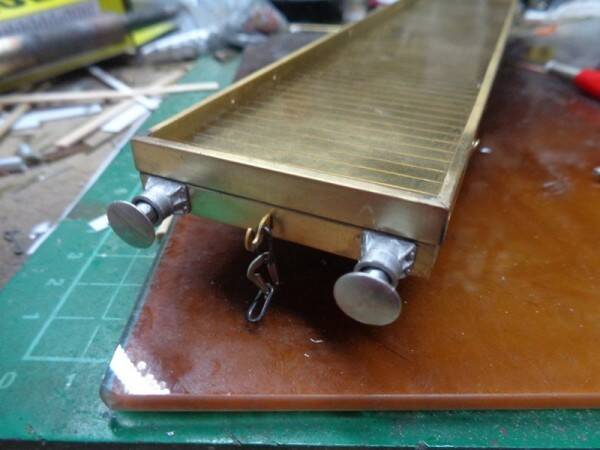

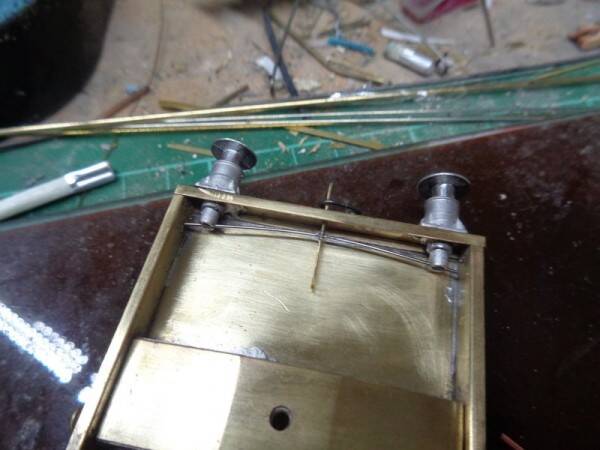

And buffers and couplings.

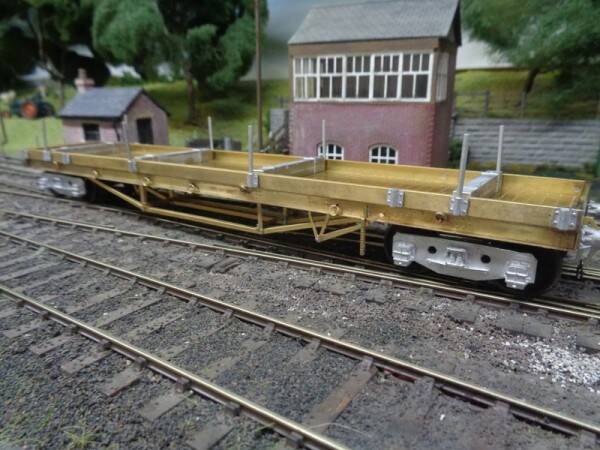

Ready for stanchions and bolsters.

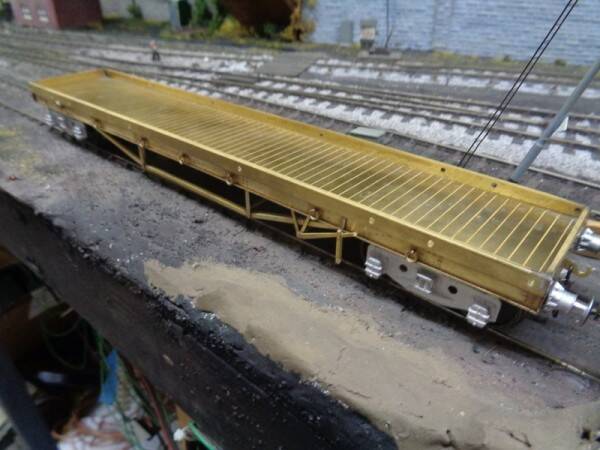

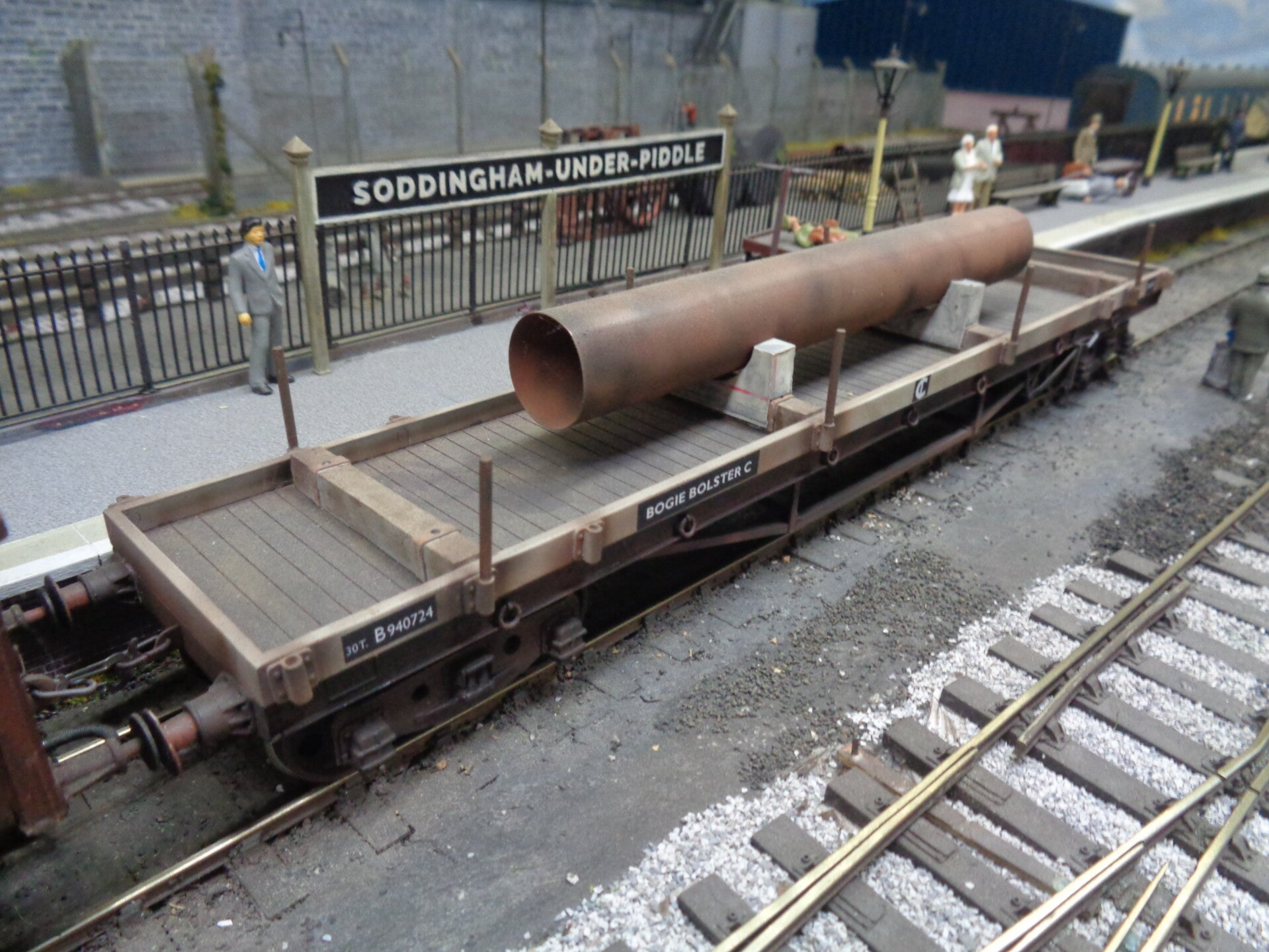

All done.
As ever this Connoisseur kit went together excellently, with really crisp castings. The long bends for the sole bars take some care. In the end I started the bends with bending bars, they always slipped out, and finished them with a small hammer. Holding the brass in the bars I gently tapped brass a bit at a time up and down the length until the 90' angle was achieved using the bars as an anvil. Patience is required, but it works just fine. Though this was built a while back, I've still not got around to weathering the transfers, adding the load chains or finishing the home brewed load supports. It took some finding to discover how large pipe loads were supported, turns out they were custom made for the particular load.
